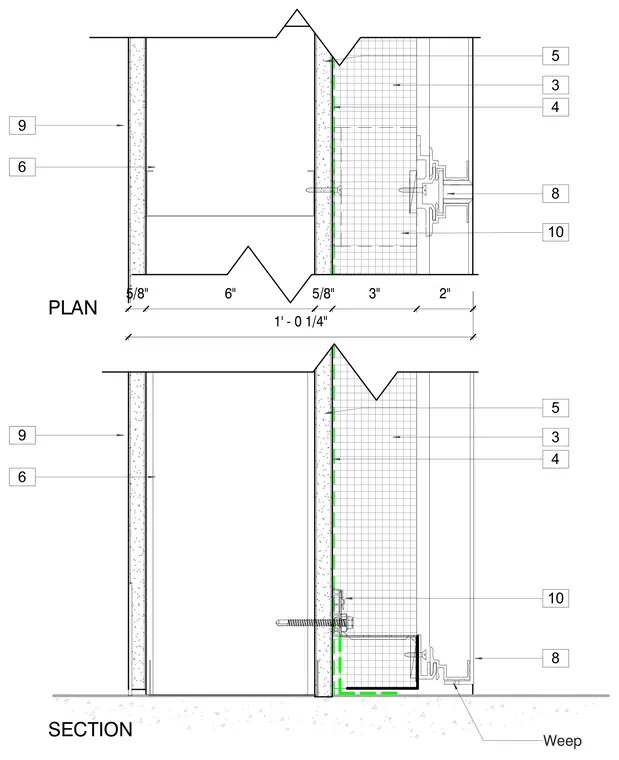

This composite metal panel assembly features exterior metal panels mounted over three-inch Z-girts, a weather-resistive barrier, and five-eighths-inch exterior sheathing. The exterior assembly ties back to cold-formed steel stud framing with interior five-eighths-inch gypsum wallboard. Fasteners secure the panel subframing through the exterior layers into the structural backup. Weep details are incorporated at the base of the section to manage drainage behind the cladding.
