Architectural · A-78WBH

Soiled Dishtable Sink Compartment

Materials

Elements

About this detail

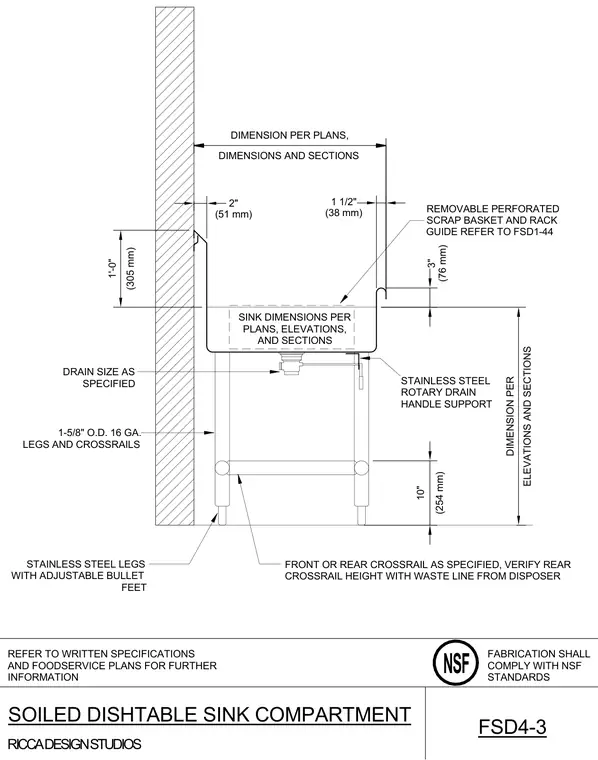

The stainless steel sink compartment features a removable perforated scrap basket and rack guide, with overall dimensions dictated by plans and sections. The assembly is supported by one and five-eighths inch outside diameter sixteen gauge legs and crossrails, equipped with adjustable bullet feet at the base. A stainless steel rotary drain handle support connects to the underside near a drain sized per specifications. Front or rear crossrails are installed as specified, requiring verification of the rear crossrail height against the waste line from the disposer.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
