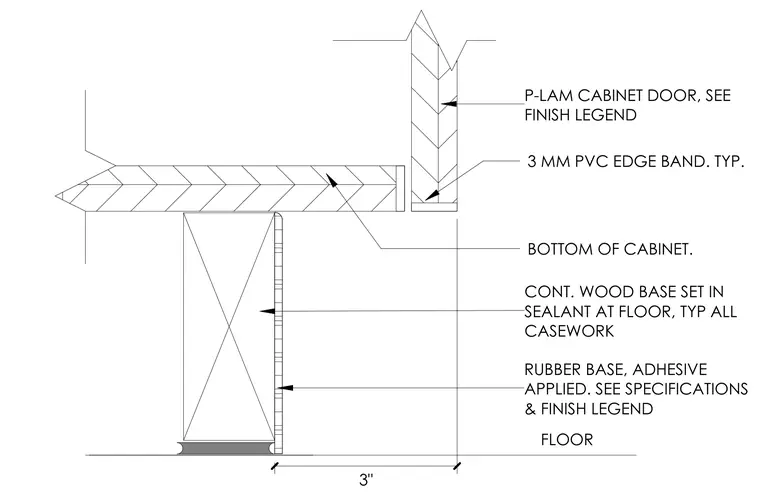

This cabinet detail shows the intersection of the casework bottom and the floor with a continuous wood base set in sealant. A rubber base is applied with adhesive to the face of the toe kick. The plastic laminate cabinet door features a three millimeter PVC edge band typically applied at edges. The bottom of the cabinet sits above the toe kick assembly per the finish legend and specifications.
FLOOR BOTTOM OF CABINET. 3 MM PVC EDGE BAND. TYP. 3" P-LAM CABINET DOOR, SEE FINISH LEGEND CONT. WOOD BASE SET IN SEALANT AT FLOOR, TYP ALL CASEWORK RUBBER BASE, ADHESIVE APPLIED. SEE SPECIFICATIONS & FINISH LEGEND
