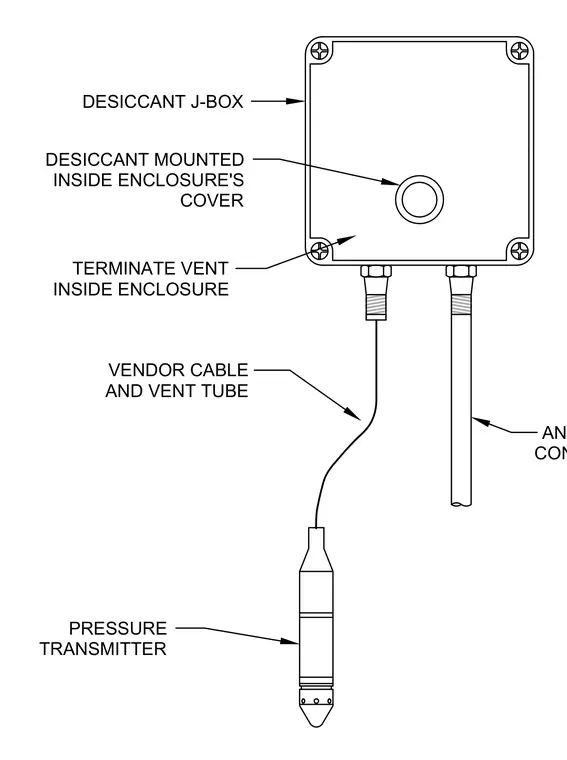

A desiccant junction box houses a desiccant mounted inside the enclosure's cover. A vent terminates inside the enclosure. A vendor cable and vent tube connect to a pressure transmitter with analog conduit.
DESICCANT J-BOX DESICCANT MOUNTED INSIDE ENCLOSURE'S COVER TERMINATE VENT INSIDE ENCLOSURE VENDOR CABLE AND VENT TUBE PRESSURE TRANSMITTER ANALOG CONDUIT
