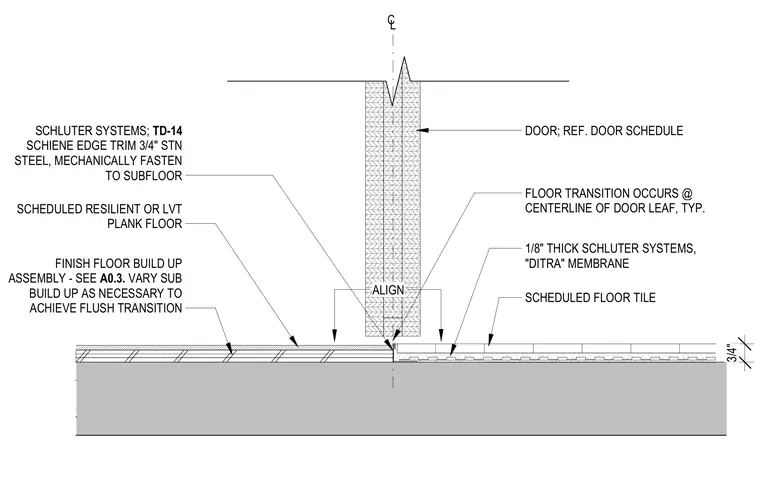

This interior floor transition detail occurs at the centerline of a door leaf between scheduled resilient or luxury vinyl tile plank flooring and scheduled floor tile. A three-quarter-inch stainless steel Schluter Systems TD-14 Schiene edge trim mechanically fastens to the subfloor to separate and protect the flooring materials. The tile assembly incorporates a one-eighth-inch thick Schluter Systems Ditra membrane beneath the tile. The finish floor buildup assembly varies as necessary to achieve a flush transition aligned beneath the door.
SCHEDULED RESILIENT OR LVT PLANK FLOOR DOOR; REF. DOOR SCHEDULE SCHEDULED FLOOR TILE 1/8" THICK SCHLUTER SYSTEMS, "DITRA" MEMBRANE FLOOR TRANSITION OCCURS @ CENTERLINE OF DOOR LEAF, TYP. C L SCHLUTER SYSTEMS; TD-14 SCHIENE EDGE TRIM 3/4" STN STEEL, MECHANICALLY FASTEN TO SUBFLOOR 3/4" FINISH FLOOR BUILD UP ASSEMBLY - SEE A0.3. VARY SUB BUILD UP AS NECESSARY TO ACHIEVE FLUSH TRANSITION ALIGN
