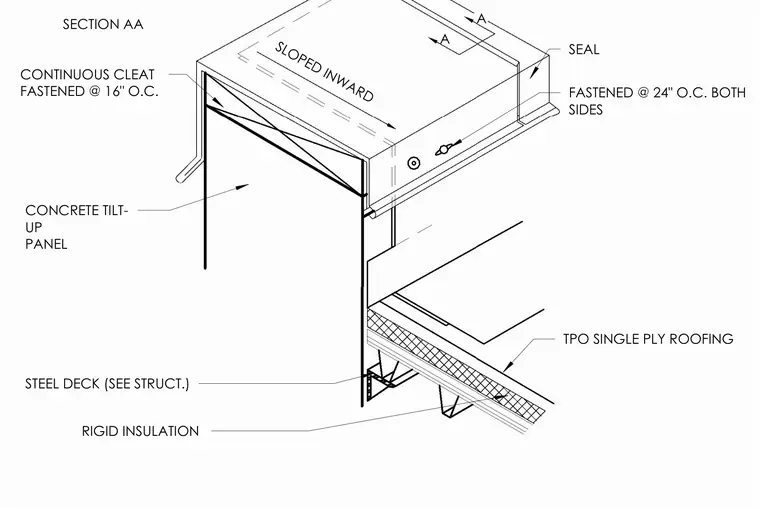

A parapet coping and roof edge assembly bears on a concrete tilt-up wall panel. The roof construction incorporates a steel deck supporting rigid insulation and a TPO single-ply roofing membrane. A continuous cleat fastened at sixteen inches on center secures the coping, which is sloped inward and sealed. The TPO single-ply roofing is fastened at twenty-four inches on center on both sides.
SEAL TPO SINGLE PLY ROOFING FASTENED @ 24" O.C. BOTH SIDES RIGID INSULATION A A SLOPED INWARD CONTINUOUS CLEAT FASTENED @ 16" O.C. SECTION AA STEEL DECK (SEE STRUCT.) CONCRETE TILT- UP PANEL
