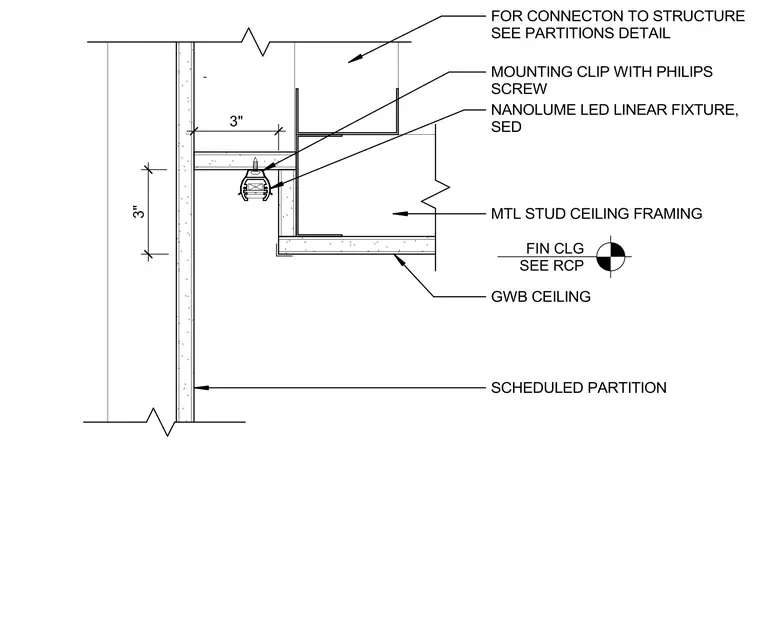

A Nanolume LED linear fixture is suspended using a 3-inch by 3-inch mounting clip secured with a Phillips screw to the metal stud ceiling framing. The assembly sits adjacent to a scheduled partition with a gypsum wallboard ceiling finish. The structural connection above is coordinated with partition details, and finished ceiling heights are referenced to the reflected ceiling plan.
FOR CONNECTON TO STRUCTURE SEE PARTITIONS DETAIL FIN CLG SEE RCP MTL STUD CEILING FRAMING NANOLUME LED LINEAR FIXTURE, SED GWB CEILING SCHEDULED PARTITION 3" 3" MOUNTING CLIP WITH PHILIPS SCREW
