An existing brick masonry wall receives a six-inch shotcrete overlay anchored by dowels set in epoxy, finished with a new brick veneer. A twelve-inch thick edge band frames the assembly at the eighth floor level, EL ninety--feet-six-inches. Structural support incorporates framing members behind the masonry assembly.

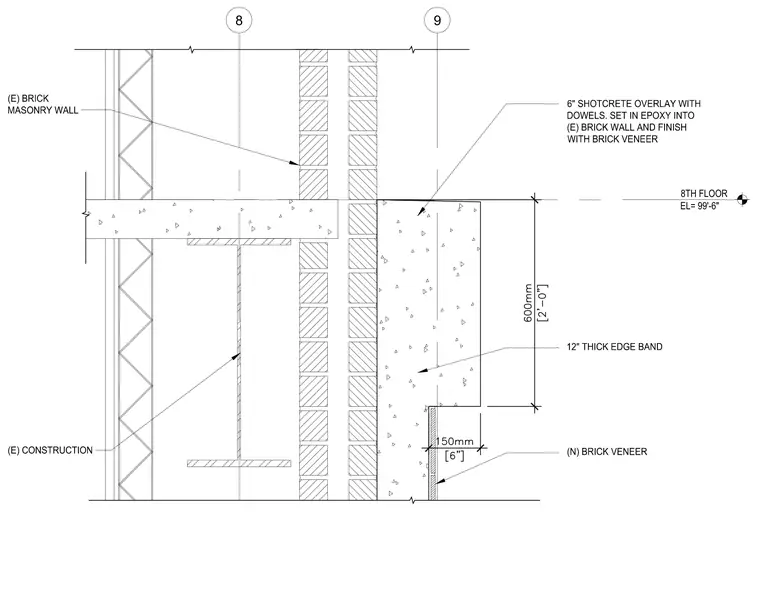

6" SHOTCRETE OVERLAY WITH DOWELS. SET IN EPOXY INTO (E) BRICK WALL AND FINISH WITH BRICK VENEER 8 9 EL= 99'-6" 8TH FLOOR (N) BRICK VENEER 12" THICK EDGE BAND (E) BRICK MASONRY WALL (E) CONSTRUCTION
