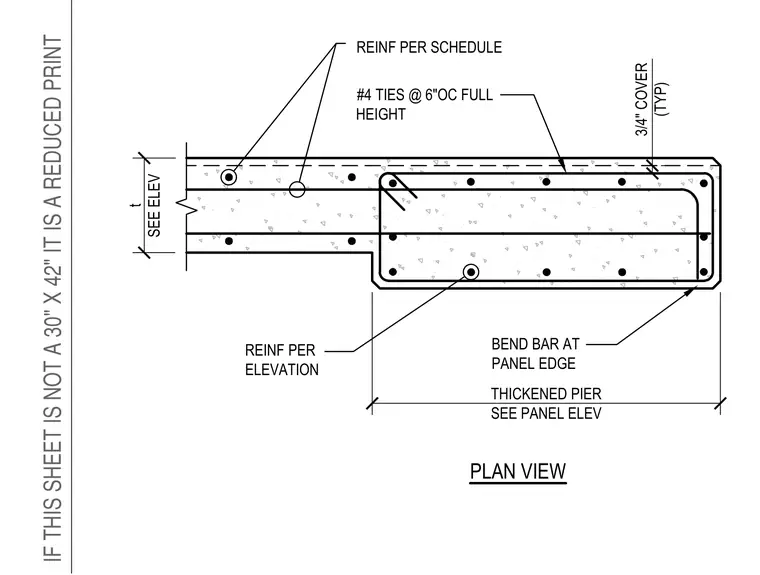

This plan view shows a reinforced concrete wall panel featuring a thickened pier at the edge. Longitudinal reinforcement is provided per the structural schedule, while the pier reinforcement is detailed per the elevation. Number 4 ties are spaced at six inches on center for the full height of the assembly. A three-quarter inch concrete cover is maintained throughout with bars bent at the panel edge.
PLAN VIEW t SEE ELEV THICKENED PIER SEE PANEL ELEV BEND BAR AT PANEL EDGE REINF PER ELEVATION REINF PER SCHEDULE 3/4" COVER (TYP) #4 TIES @ 6"OC FULL HEIGHT
