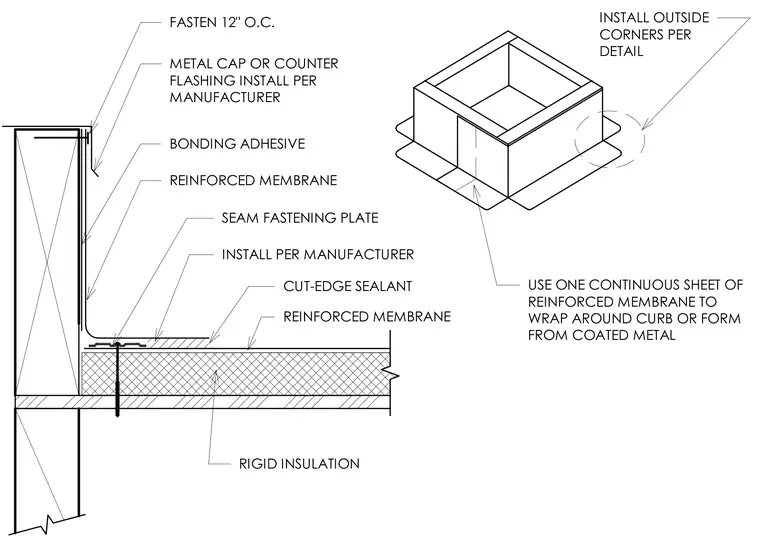

Rigid insulation is installed beneath a continuous reinforced membrane that wraps around the roof curb. Seam fastening plates secure the membrane layers, fastened twelve inches on center with cut-edge sealant applied at edges. A metal cap or counter flashing is installed at the top of the curb per the manufacturer specifications.
INSTALL OUTSIDE CORNERS PER DETAIL RIGID INSULATION REINFORCED MEMBRANE CUT-EDGE SEALANT INSTALL PER MANUFACTURER SEAM FASTENING PLATE REINFORCED MEMBRANE BONDING ADHESIVE METAL CAP OR COUNTER FLASHING INSTALL PER MANUFACTURER FASTEN 12" O.C. USE ONE CONTINUOUS SHEET OF REINFORCED MEMBRANE TO WRAP AROUND CURB OR FORM FROM COATED METAL
