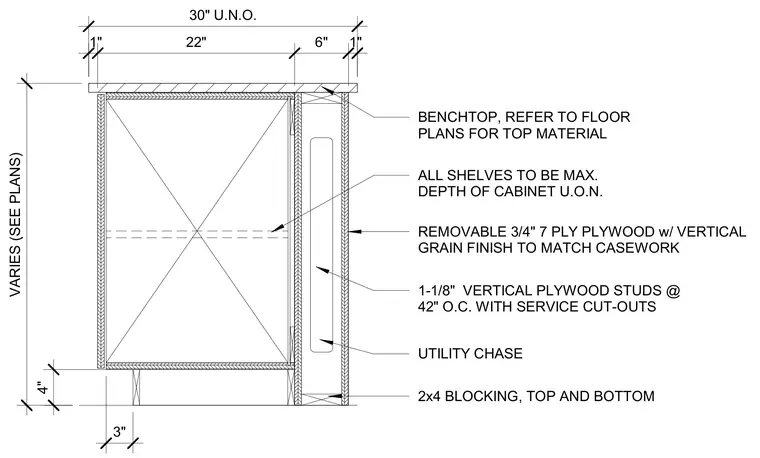

This casework assembly consists of a benchtop supported by vertical plywood framing and a dedicated utility chase with top and bottom two-by-four blocking. The casework features one-and-one-eighth-inch vertical plywood studs spaced at forty-two inches on center with integrated service cut-outs. Removable three-quarter-inch seven-ply plywood panels with a vertical grain finish enclose the assembly to match surrounding casework. Shelves are sized to maximum cabinet depth unless noted otherwise, and the benchtop material is specified per floor plans.
REMOVABLE 3/4" 7 PLY PLYWOOD w/ VERTICAL GRAIN FINISH TO MATCH CASEWORK 2x4 BLOCKING, TOP AND BOTTOM UTILITY CHASE 1-1/8" VERTICAL PLYWOOD STUDS @ 42" O.C. WITH SERVICE CUT-OUTS 30" U.N.O. 1" 22" 6" 1" . 4" 3" VARIES (SEE PLANS) ALL SHELVES TO BE MAX. DEPTH OF CABINET U.O.N. BENCHTOP, REFER TO FLOOR PLANS FOR TOP MATERIAL
