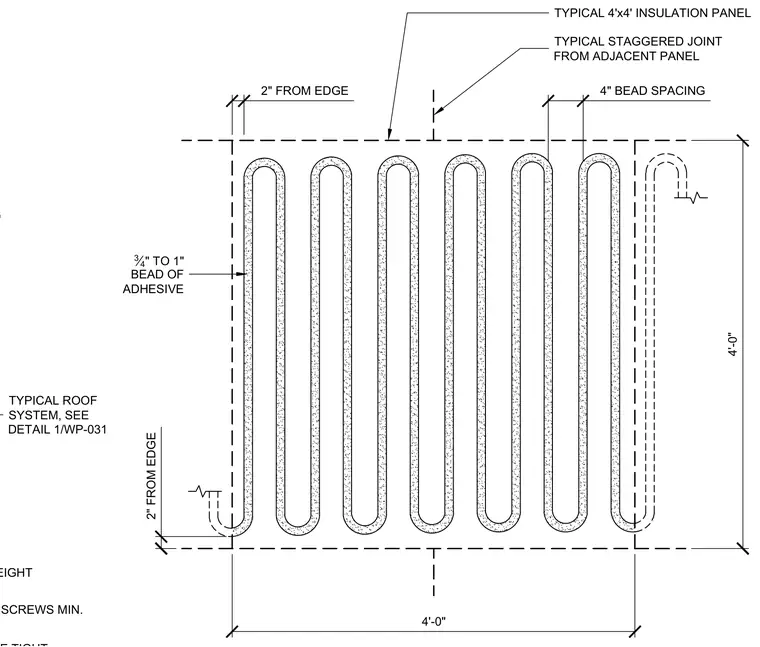

Roof insulation panels are set in a continuous serpentine pattern of three-quarter to one-inch foam adhesive beads spaced four inches on center. The adhesive pattern is offset two inches from the panel edges on all sides across four-foot by four-foot insulation panels. Adjacent panels maintain staggered joints to prevent thermal bridging and air infiltration. This adhesive application is specific to roof corner zones subjected to higher wind uplift pressures.
4" BEAD SPACING 2" FROM EDGE 2" FROM EDGE 4'-0" 3 4 " TO 1" BEAD OF ADHESIVE 4'-0" TYPICAL 4'x4' INSULATION PANEL TYPICAL STAGGERED JOINT FROM ADJACENT PANEL THERMOPLASTIC FLASHING PLATE FASTENED WITH #15 SCREWS MIN. TYPICAL ROOF SYSTEM, SEE DETAIL 1/WP-031 METAL DECK WITH LIGHTWEIGHT
