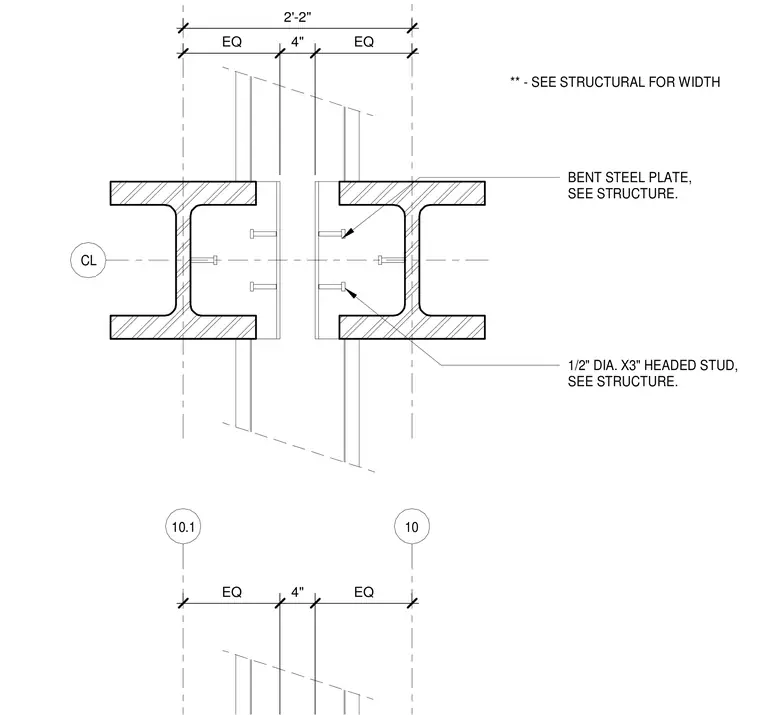

Two structural steel columns are anchored with bent steel plates across a two-foot-two-inch gap with four inches of central clearance. One-half-inch diameter by three-inch headed studs welded to the plates tie them to the structural members. Plate widths are coordinated per the structural drawings.
BENT STEEL PLATE, SEE STRUCTURE. 1/2" DIA. X3" HEADED STUD, SEE STRUCTURE. ** - SEE STRUCTURAL FOR WIDTH 10.1 10 CL 2'-2" EQ 4" EQ EQ 4" EQ
