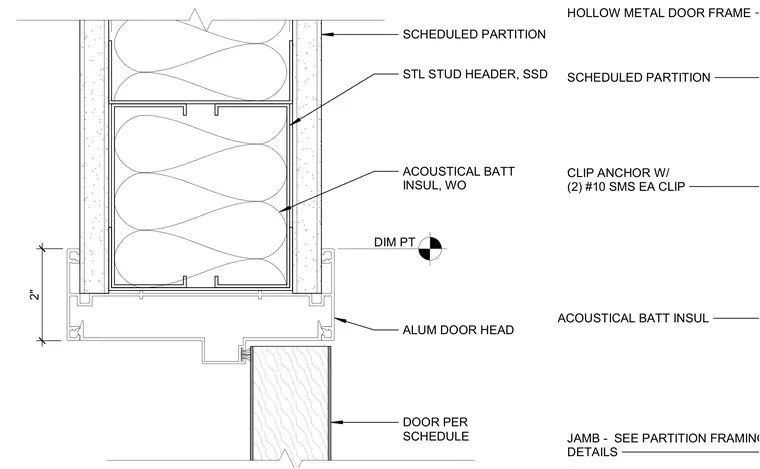

An aluminum door head section sits directly beneath a two-inch steel stud header framed within a scheduled partition. Acoustical batt insulation fills the cavity above the header and within the wall framing. A hollow metal door frame clip anchor secures the assembly with two number ten sheet metal screws at each clip jamb. A dimension point aligns with the aluminum door head profile.
HOLLOW METAL DOOR FRAME CLIP ANCHOR W/ (2) #10 SMS EA CLIP JAMB - SEE PARTITION FRAMING DETAILS SCHEDULED PARTITION ACOUSTICAL BATT INSUL DOOR PER SCHEDULE ALUM DOOR HEAD 2" STL STUD HEADER, SSD SCHEDULED PARTITION ACOUSTICAL BATT INSUL, WO DIM PT
