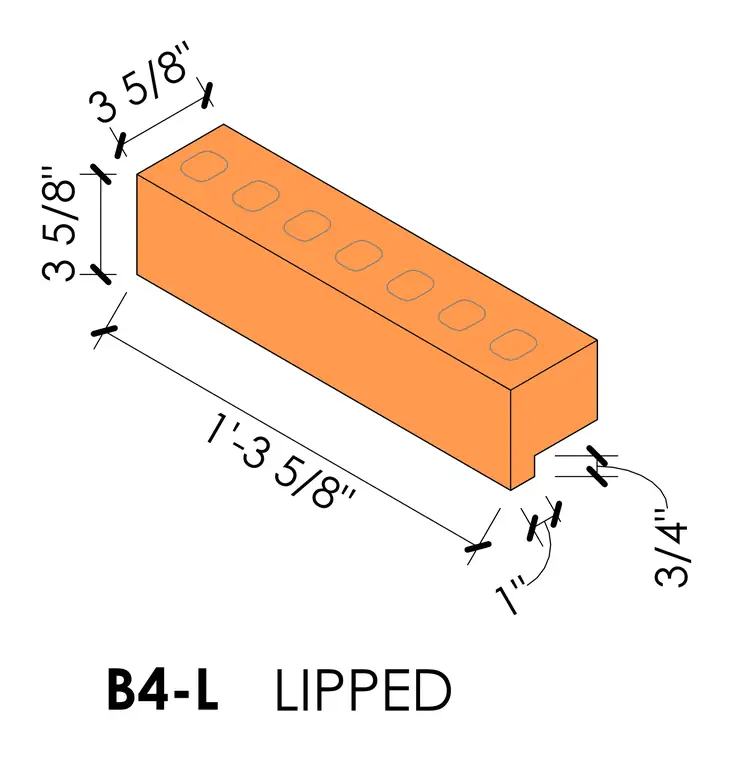

The B4-L lipped masonry unit measures 1 foot 3 and 5/8 inches in length, 3 and 5/8 inches in width, and 3 and 5/8 inches in height overall. A one-inch lip with a 3/4-inch depth dimension is located at the end. Seven core holes are arranged uniformly along the top surface of the unit.
