A floor-mounted ladder connects to a scheduled metal stud wall reinforced with two-by-six wood framing backing at the brackets. The assembly utilizes angle profiles measuring four inches by four inches positioned at the ladder brackets. Three-quarter-inch diameter rungs with a non-slip surface span between two-and-a-half-inch by half-inch rails. Three-eighths-inch plates measuring four inches high are spaced at forty-eight inches on center and welded to the rails.

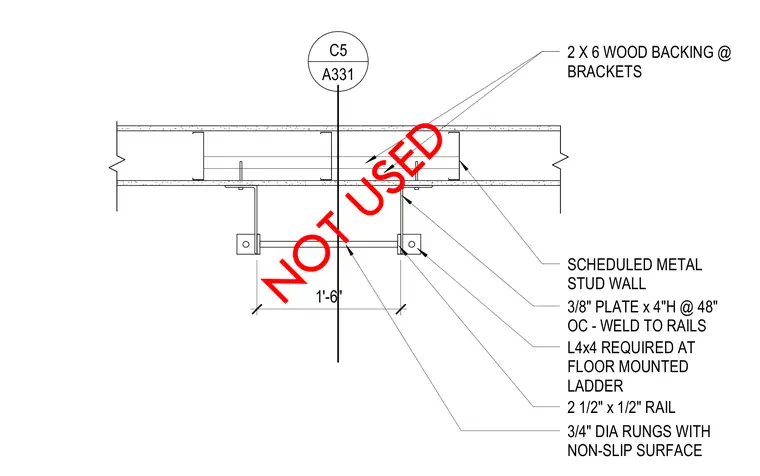

1'-6" 3/8" PLATE x 4"H @ 48" OC - WELD TO RAILS 2 1/2" x 1/2" RAIL 3/4" DIA RUNGS WITH NON-SLIP SURFACE SCHEDULED METAL STUD WALL 2 X 6 WOOD BACKING @ BRACKETS L4x4 REQUIRED AT FLOOR MOUNTED LADDER C5 A331 NOT USED
