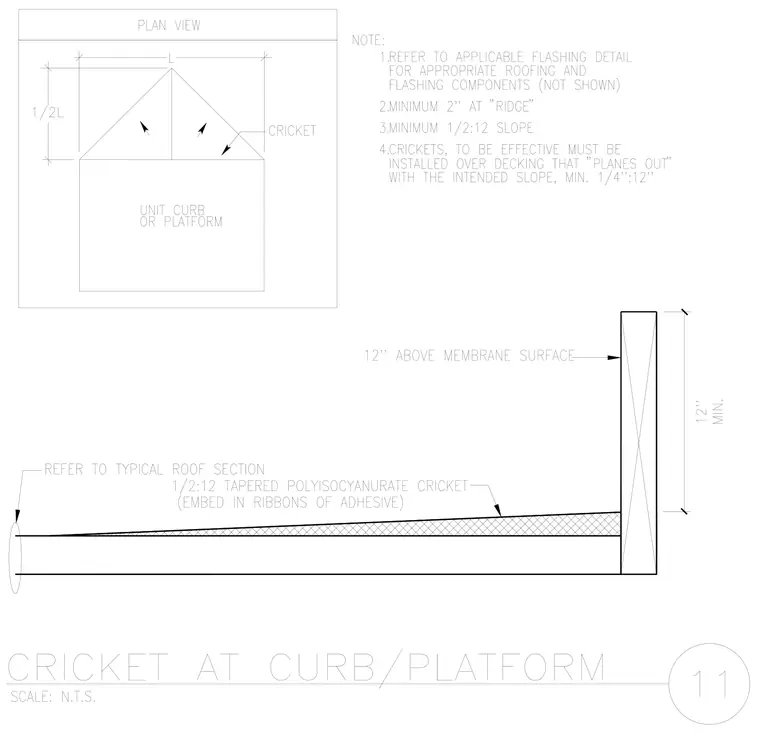

A roof cricket features a minimum one-half inch per twelve slope and a minimum two-inch height at the ridge, installed over decking that planes out with a minimum one-quarter inch per twelve intended slope. The tapered polyisocyanurate cricket is embedded in ribbons of adhesive and set against a curb or platform extending twelve inches minimum above the membrane surface. Additional notes require reference to applicable flashing details for appropriate roofing and flashing components.
