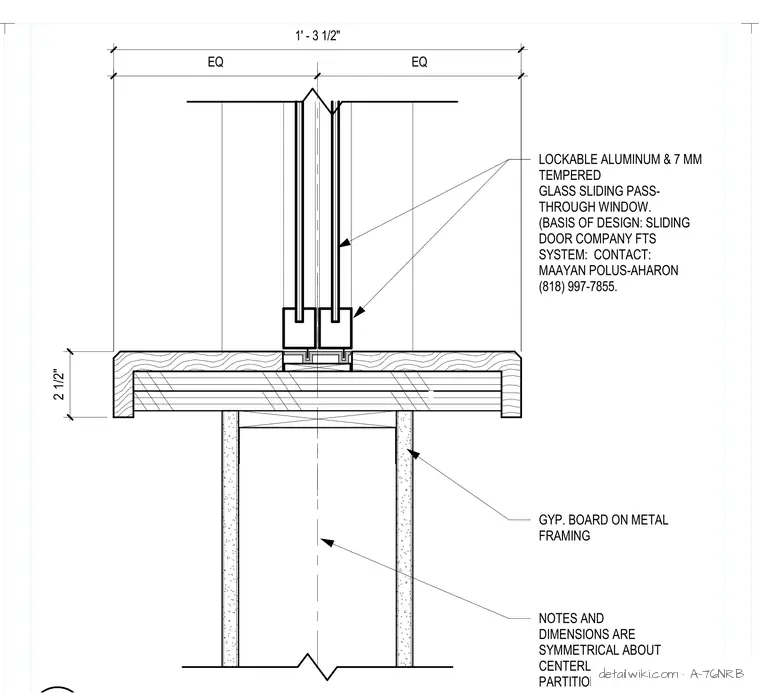

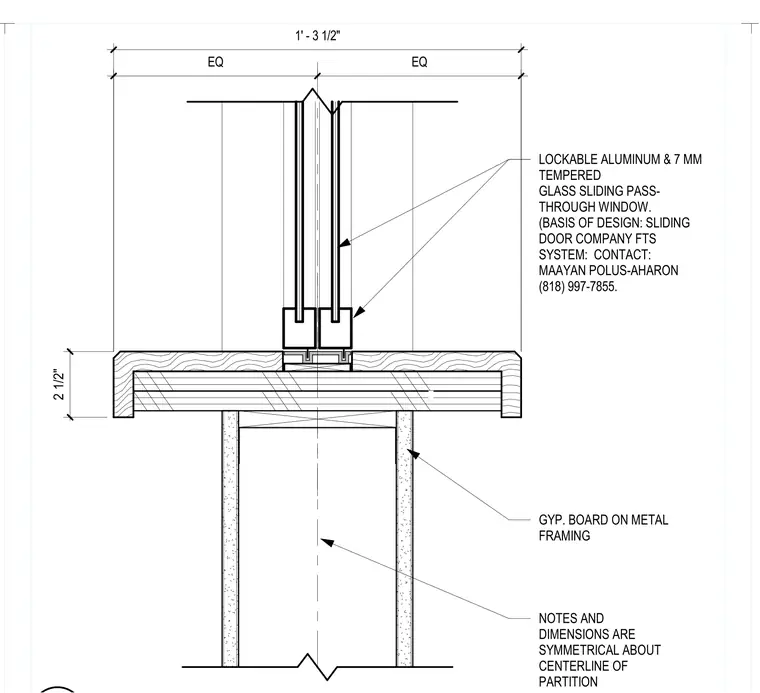

This assembly features a lockable aluminum and seven millimeter tempered glass sliding pass-through window centered on a partition. The window unit rests on a wood sill that spans the width of the wall, which is finished with gypsum board on metal framing. The entire assembly is symmetrical about the centerline of the partition, with a total width of one foot three and one-half inches. The sill depth is two and one-half inches.
