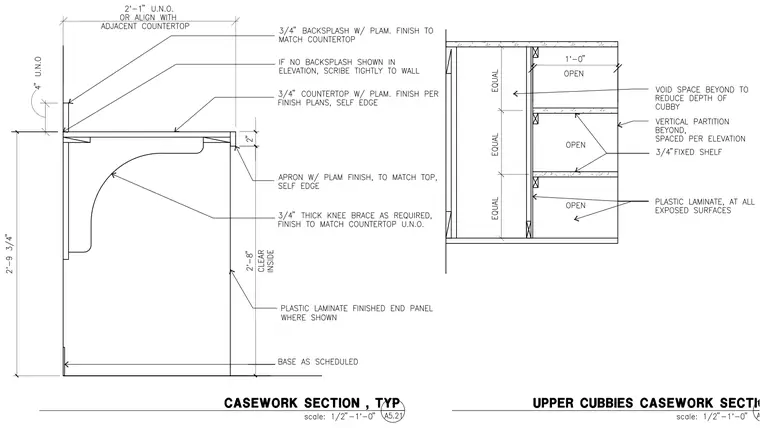

This casework detail shows a three-quarter-inch plastic laminate countertop with a self edge, supported by a matching apron and a three-quarter-inch thick knee brace. The vertical assembly features a plastic laminate finished end panel with a base as scheduled and an interior clear height of two feet eight and three-quarter inches. A four-inch high backsplash with plastic laminate finish is scribed tightly to the wall where no backsplash is shown in elevation. The accompanying upper cubbies section details three-quarter-inch fixed shelves spanning between vertical partitions, featuring plastic laminate at all exposed surfaces and a void space behind to reduce the depth of the cubby.
