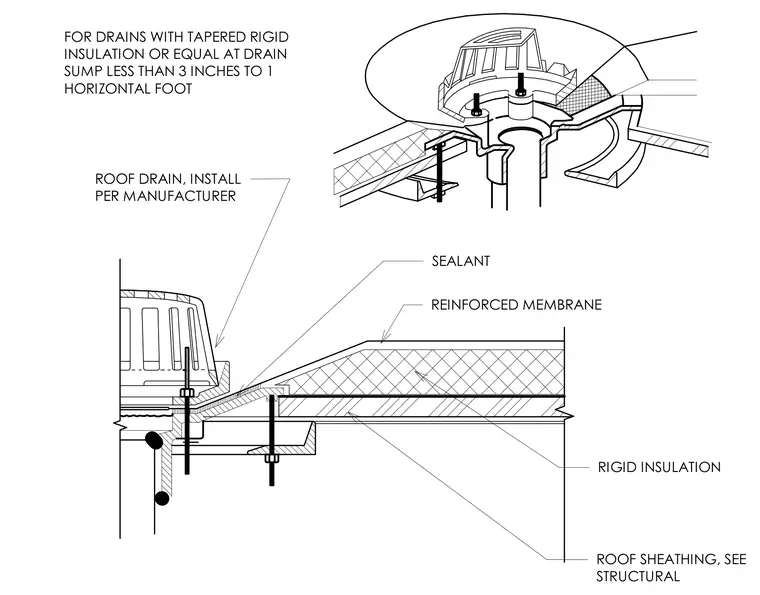

The roof drain assembly is installed over roof sheathing with tapered rigid insulation sloping toward the drain sump at less than three inches per horizontal foot. A reinforced membrane waterproofing layer extends continuously over the rigid insulation and terminates at the drain flashing ring with sealant. The roof drain unit is anchored mechanically per the manufacturer recommendations.
ROOF SHEATHING, SEE STRUCTURAL FOR DRAINS WITH TAPERED RIGID INSULATION OR EQUAL AT DRAIN SUMP LESS THAN 3 INCHES TO 1 HORIZONTAL FOOT ROOF DRAIN, INSTALL PER MANUFACTURER SEALANT REINFORCED MEMBRANE RIGID INSULATION
