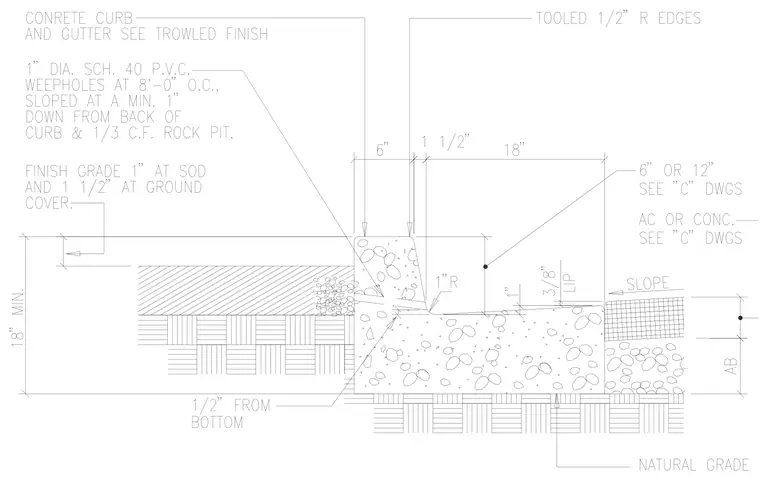

A cast-in-place concrete curb and gutter assembly is detailed with a trowled finish and tooled one-half inch radius edges. One-inch diameter schedule forty polyvinyl chloride weep holes are spaced at eight feet on center, sloped at a minimum of one inch down from the back of the curb toward a rock pit. Finish grade is set one inch at sod and one and one-half inches at ground cover. The adjacent pavement consists of either asphalt concrete or Portland cement concrete per civil drawings.
