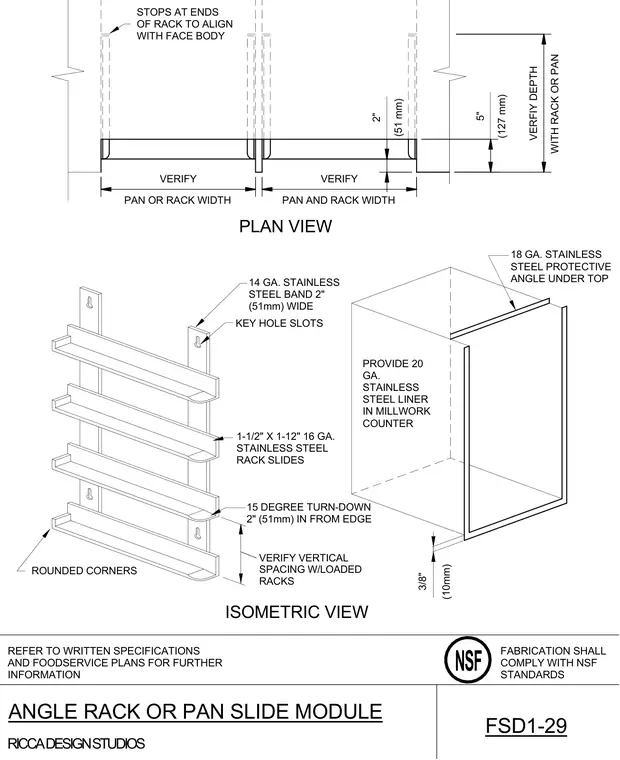

An angle rack or pan slide module constructed from stainless steel components features 16-gauge rack slides measuring 1-1/2 inches by 1-1/2 inches with NSF-compliant rounded corners. The assembly incorporates 14-gauge stainless steel bands with keyhole slots, two inches wide, along with a 20-gauge stainless steel liner for the millwork counter. An 18-gauge stainless steel protective angle is positioned under the top, and stops are included at the ends of the rack to align with the face body. The rack slides feature a 15-degree turn-down two inches in from the edge, with vertical spacing and pan depths to be verified on site.
REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF ROUNDED CORNERS 1-1/2" X 1-12" 16 GA. STAINLESS STEEL RACK SLIDES KEY HOLE SLOTS 14 GA. STAINLESS STEEL BAND 2" (51mm) WIDE VERIFY VERTICAL SPACING W/LOADED RACKS 3/8" (10mm) PROVIDE 20 GA. STAINLESS STEEL LINER IN MILLWORK COUNTER 18 GA. STAINLESS STEEL PROTECTIVE ANGLE UNDER TOP STOPS AT ENDS OF RACK TO ALIGN WITH FACE BODY 15 DEGREE TURN-DOWN 2" (51mm) IN FROM EDGE PLAN VIEW ISOMETRIC VIEW WITH RACK OR PAN VERFIY DEPTH (127 mm) 5" (51 mm) 2" PAN OR RACK WIDTH VERIFY PAN AND RACK WIDTH VERIFY ANGLE RACK OR PAN SLIDE MODULE FSD1-29
