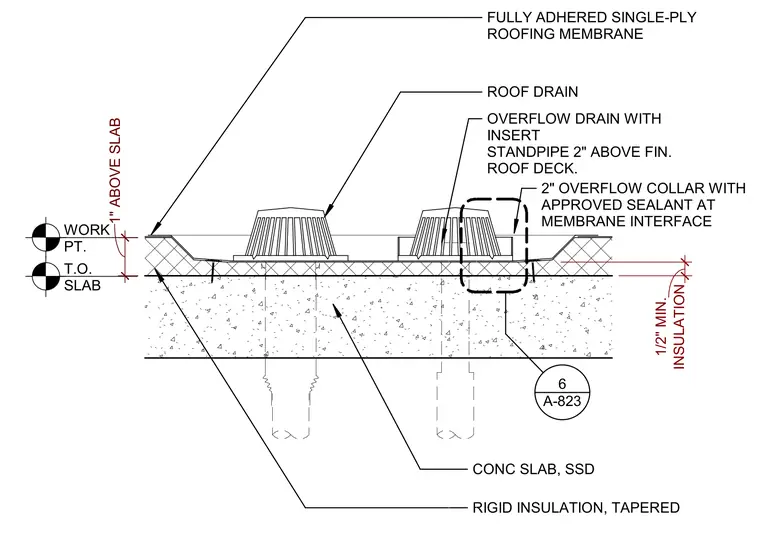

Roof and overflow drains are set into a structural concrete slab with solid slab design, covered by tapered rigid insulation and a fully adhered single-phase roofing membrane. An overflow drain includes an insert standpipe extending two inches above the finished roof deck. A two-inch overflow collar is sealed with an approved sealant at the membrane interface. Tapered rigid insulation maintains a one-half inch minimum thickness over the slab, sloping toward the drain sumps.
OVERFLOW DRAIN WITH INSERT STANDPIPE 2" ABOVE FIN. ROOF DECK. ROOF DRAIN CONC SLAB, SSD RIGID INSULATION, TAPERED FULLY ADHERED SINGLE-PLY ROOFING MEMBRANE WORK PT. INSULATION 1/2" MIN. 1" ABOVE SLAB 2" OVERFLOW COLLAR WITH APPROVED SEALANT AT MEMBRANE INTERFACE A-823 6 T.O. SLAB
