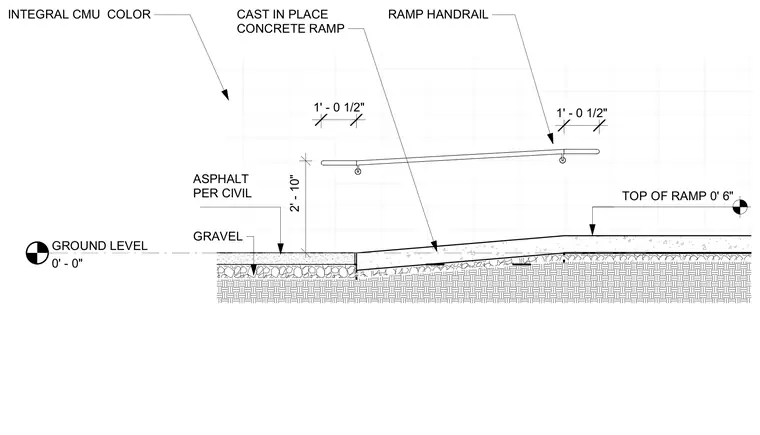

A cast-in-place concrete ramp transitions from a ground level datum of 0'-0" up to a top of ramp elevation of 0'-6". The assembly bears on a gravel sub-base adjacent to asphalt paving per civil specifications. An integral colored concrete masonry unit wall abuts the ramp assembly. A ramp handrail is mounted above the sloping concrete surface.
0' - 0" DATUM 0' - 0" GROUND LEVEL 1' - 0 1/2" 1' - 0 1/2" INTEGRAL CMU COLOR 2' - 10" ASPHALT PER CIVIL GRAVEL CAST IN PLACE CONCRETE RAMP TOP OF RAMP 0' 6" RAMP HANDRAIL
