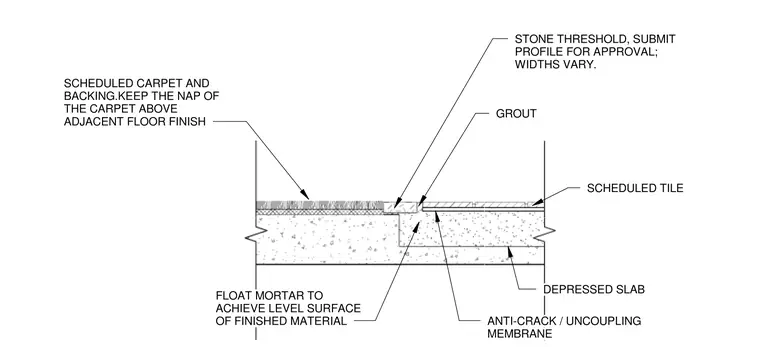

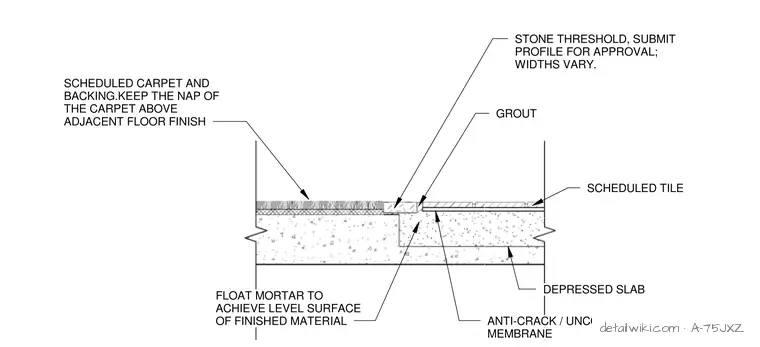

Scheduled carpet and backing transition to a scheduled tile floor set over a depressed concrete slab. An anti-crack and uncoupling membrane is applied over the depressed slab beneath float mortar, which is used to achieve a level surface for the finished materials. A stone threshold with varying widths separates the carpet and tile, secured with grout. The nap of the carpet is maintained above the adjacent floor finish.
SCHEDULED CARPET AND BACKING.KEEP THE NAP OF THE CARPET ABOVE ADJACENT FLOOR FINISH STONE THRESHOLD, SUBMIT PROFILE FOR APPROVAL; WIDTHS VARY. GROUT SCHEDULED TILE FLOAT MORTAR TO ACHIEVE LEVEL SURFACE OF FINISHED MATERIAL ANTI-CRACK / UNCOUPLING MEMBRANE DEPRESSED SLAB
