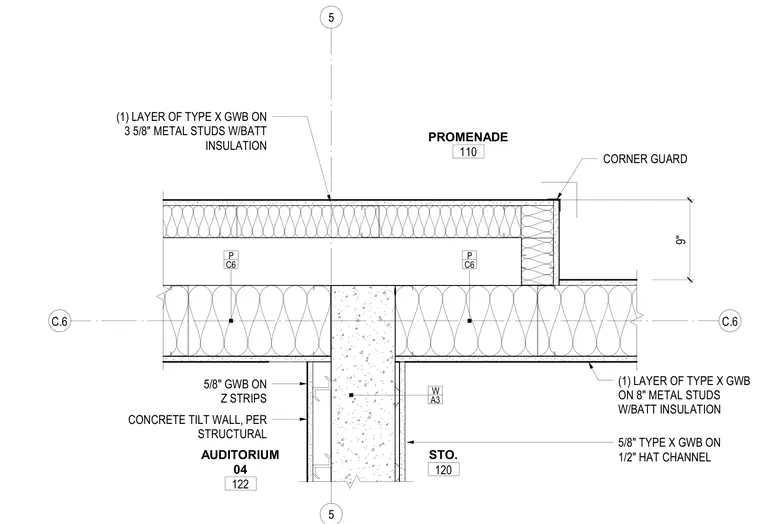

This plan detail shows a wall intersection with a concrete tilt-up wall backed by gypsum wallboard on Z strips, meeting an interior partition framed with 3-5/8 inch metal studs and batt insulation finished with one layer of type X gypsum wallboard. The adjacent assembly incorporates 8-inch metal studs with batt insulation and type X gypsum wallboard, finished at the corner with a 9-inch corner guard. Wall finishes transition between the auditorium, promenade, and storage spaces.
5 5 C.6 C.6 A3 W C6 P C6 P (1) LAYER OF TYPE X GWB ON 3 5/8" METAL STUDS W/BATT INSULATION (1) LAYER OF TYPE X GWB ON 8" METAL STUDS W/BATT INSULATION 5/8" TYPE X GWB ON 1/2" HAT CHANNEL 5/8" GWB ON Z STRIPS PROMENADE 110 STO. 120 AUDITORIUM 04 122 CONCRETE TILT WALL, PER STRUCTURAL 9" CORNER GUARD
