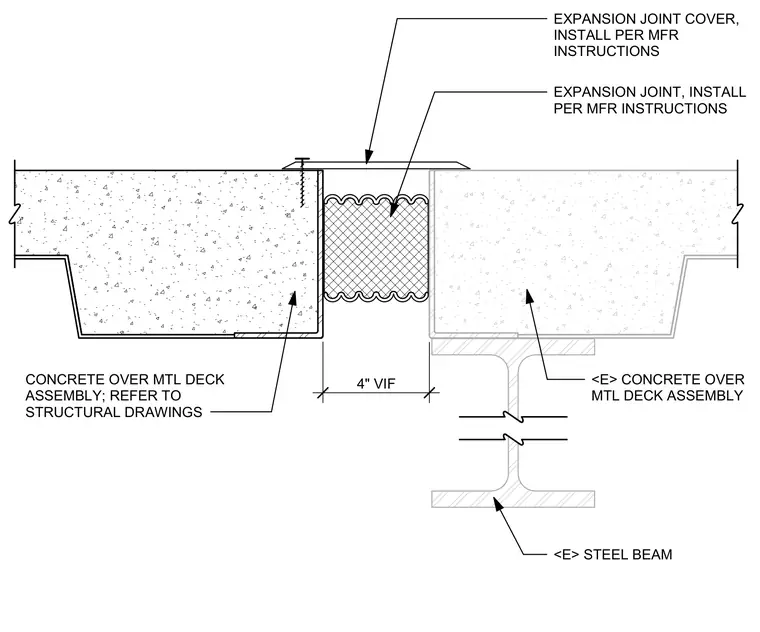

An expansion joint cover spans a four-inch verify-in-field gap between two adjacent concrete over metal deck assemblies. The joint assembly consists of a flexible expansion joint installed per manufacturer instructions and capped with an expansion joint cover secured to the concrete slab. The concrete slabs bear on steel beams, with structural coordination referenced to the structural drawings.
EXPANSION JOINT, INSTALL PER MFR INSTRUCTIONS <E> CONCRETE OVER MTL DECK ASSEMBLY <E> STEEL BEAM 4" VIF EXPANSION JOINT COVER, INSTALL PER MFR INSTRUCTIONS CONCRETE OVER MTL DECK ASSEMBLY; REFER TO STRUCTURAL DRAWINGS
