Architectural · A-75BRQ

Butt Glaze Jamb Thin Aluminum Frame

Materials

Steel Cold-formed Steel Timber / Wood Glass / Glazing Aluminum Metal (misc.)Gypsum / Drywall

Elements

About this detail

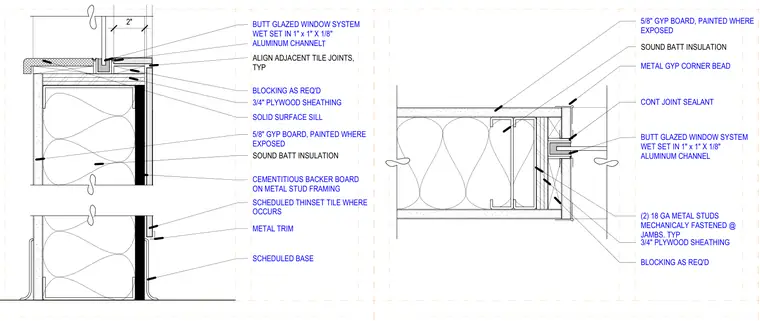

A butt-glazed window system is wet-set in a one-inch by one-inch by one-eighth-inch aluminum channel at the jamb and sill. The assembly is framed with two eighteen-gauge metal studs mechanically fastened at the jambs, backed by three-quarter-inch plywood sheathing and blocking as required. Interior partitions feature five-eighth-inch gypsum board, painted where exposed, with sound batt insulation and cementitious backer board with scheduled thinset tile where it occurs. Continuous joint sealant is applied at the frame transitions, finished with a metal gypsum corner bead, scheduled base, and metal trim.
