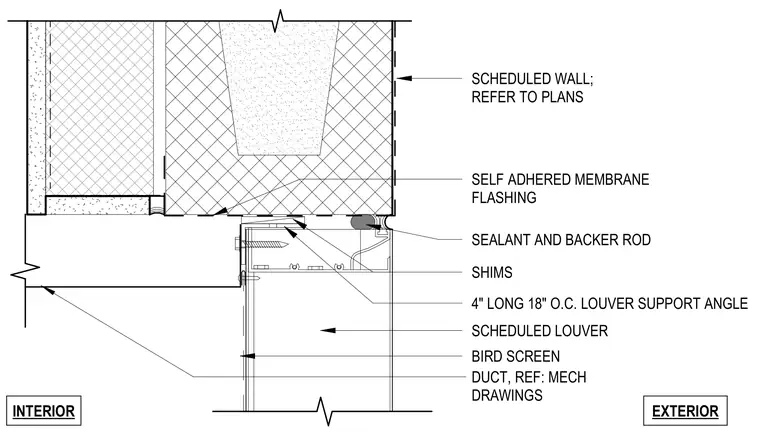

Four-inch long support angles spaced at eighteen inches on center support the louver head and are shimmed to the scheduled wall assembly. Self-adhered membrane flashing at the head provides a weather-tight transition between the wall and the louver frame. The exterior joint is sealed with a backer rod and sealant. A bird screen installed at the interior face of the louver connects to the mechanical ductwork as specified in the mechanical drawings.
Text on the drawing
SCHEDULED WALL; REFER TO PLANS SCHEDULED LOUVER SELF ADHERED MEMBRANE FLASHING SHIMS 4" LONG 18" O.C. LOUVER SUPPORT ANGLE BIRD SCREEN SEALANT AND BACKER ROD DUCT, REF: MECH DRAWINGS INTERIOR EXTERIOR
