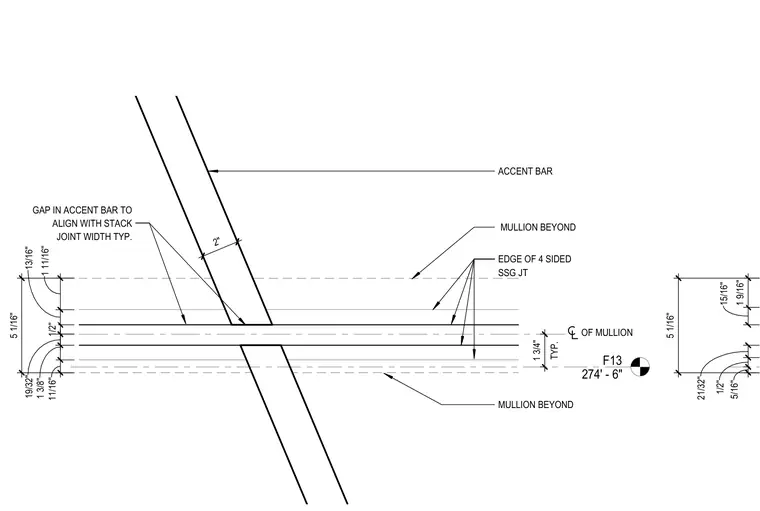

An accent bar intersects a mullion with a two-inch typical width, featuring a gap that aligns with the typical stack joint width. The assembly includes four-sided structural silicone glazing joints along the mullion edges. Precise dimensional callouts govern the spacing relative to the centerline of the mullion and elevation markers.
F13 274' - 6" 1 1 / 1 6 " 1 3 / 8 " 1 / 2 " 1 3 / 1 6 " 1 1 1 / 1 6 " 1 9 / 3 2 " 2 " T Y P . 1 3 / 4 " ACCENT BAR EDGE OF 4 SIDED SSG JT OF MULLION MULLION BEYOND MULLION BEYOND GAP IN ACCENT BAR TO ALIGN WITH STACK JOINT WIDTH TYP. 5 1 / 1 6 " 5 1 / 1 6 " 5 / 1 6 " 1 / 2 " 2 1 / 3 2 " 1 5 / 1 6 " 1 9 / 1 6 "
