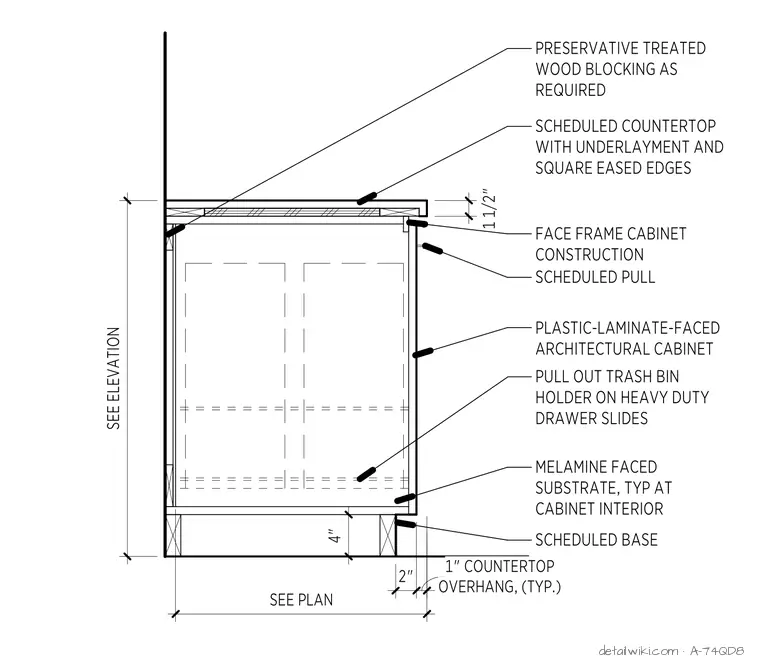

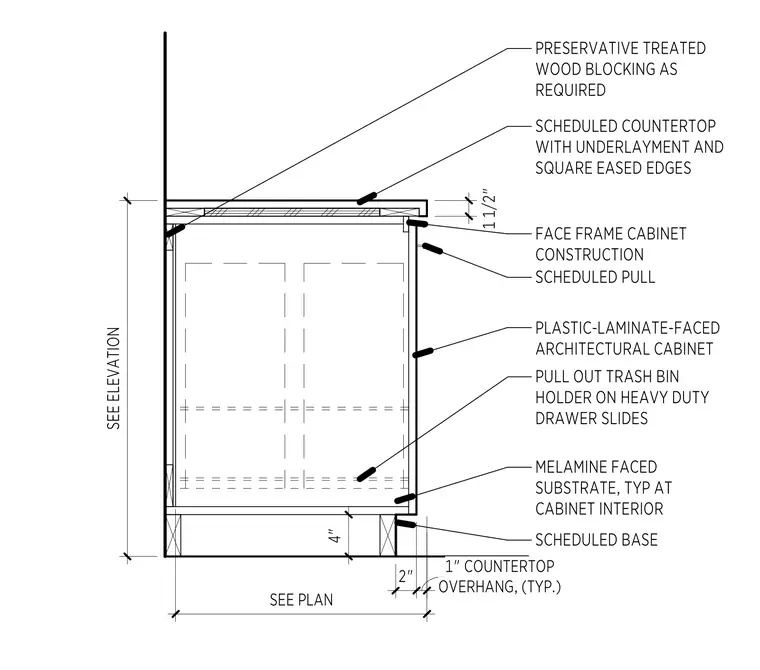

This cabinet assembly consists of a plastic-laminate-faced architectural cabinet with a face frame construction. The interior is finished with a melamine-faced substrate. A pull-out trash bin holder is mounted on heavy-duty drawer slides. The top assembly includes preservative-treated wood blocking as required to support a one-and-a-half-inch thick scheduled countertop with square eased edges. The base is a scheduled base with a two-inch typical countertop overhang.
