An acoustical wall assembly terminates at a deflection track below a concrete slab allowing vertical movement while maintaining sound attenuation. The gypsum board extends to one-half inch below the top of the deflection track with a controlled joint gap. Acoustic batt insulation fills the void above the wall partition, and acoustic sealant is applied on both sides of the assembly at the track interface.

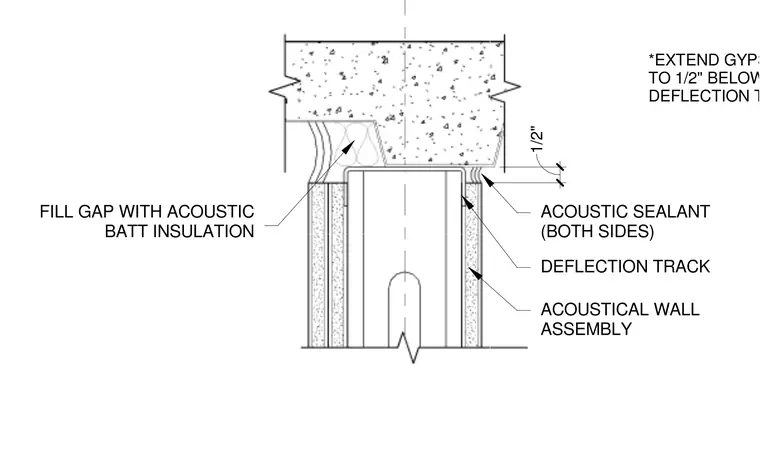

DEFLECTION TRACK ACOUSTICAL WALL ASSEMBLY ACOUSTIC SEALANT (BOTH SIDES) FILL GAP WITH ACOUSTIC BATT INSULATION 1/2" *EXTEND GYPSUM BOARD TO 1/2" BELOW TOP OF DEFLECTION TRACK.
