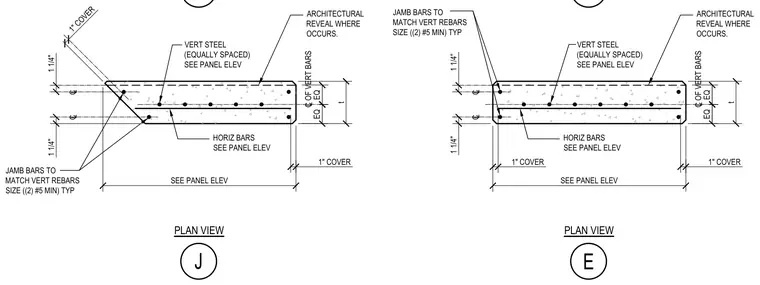

These plan view details show the reinforcing layout and concrete cover for reinforced concrete wall panels. Vertical steel and horizontal bars are spaced according to the panel elevation, maintaining a one-inch concrete cover. Jamb bars match the vertical rebar size with a minimum of two number five bars typically. Architectural reveals are incorporated where indicated on the panel.
D t SEE PANEL ELEV CL CL 1 1/4" 1 1/4" ARCHITECTURAL REVEAL WHERE OCCURS. E H CL CL 1 1/4" 1 1/4" 1" COVER J HORIZ BARS SEE PANEL ELEV JAMB BARS TO MATCH VERT REBARS SIZE ((2) #5 MIN) TYP JAMB BARS TO MATCH VERT REBARS SIZE ((2) #5 MIN) TYP SEE PANEL ELEV 1" COVER 1" COVER VERT STEEL (EQUALLY SPACED) SEE PANEL ELEV EQ EQ C OF VERT BARS L t EQ EQ C OF VERT BARS L ARCHITECTURAL REVEAL WHERE OCCURS. VERT STEEL (EQUALLY SPACED) SEE PANEL ELEV 1" COVER HORIZ BARS SEE PANEL ELEV PLAN VIEW PLAN VIEW
