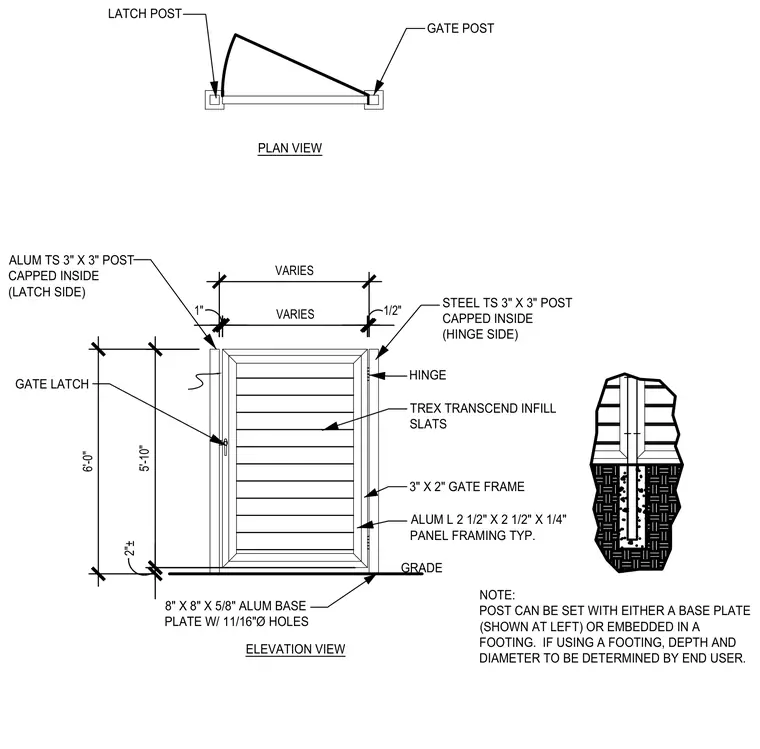

This single swing gate detail shows elevation and plan views of a gate assembly with a 3 by 2 inch gate frame and Trex Transcend infill slats. The panel framing uses typical 2 1/2 by 2 1/2 by 1/4 inch aluminum angles. The hinge side features a steel 3 by 3 inch tubular steel post capped inside, while the latch side utilizes an aluminum 3 by 3 inch tubular post capped inside with a gate latch. The posts can be set with an 8 by 8 by 5/8 inch aluminum base plate featuring 11/16 inch diameter holes or embedded in a footing with depth and diameter determined by the end user.
ELEVATION VIEW PLAN VIEW 2"± 5'-10" 6'-0" GATE POST VARIES GATE LATCH 3" X 2" GATE FRAME GRADE 1/2" VARIES 1" NOTE: POST CAN BE SET WITH EITHER A BASE PLATE (SHOWN AT LEFT) OR EMBEDDED IN A FOOTING. IF USING A FOOTING, DEPTH AND DIAMETER TO BE DETERMINED BY END USER. ALUM TS 3" X 3" POST CAPPED INSIDE (LATCH SIDE) TREX TRANSCEND INFILL SLATS ALUM L 2 1/2" X 2 1/2" X 1/4" PANEL FRAMING TYP. LATCH POST STEEL TS 3" X 3" POST CAPPED INSIDE (HINGE SIDE) HINGE 8" X 8" X 5/8" ALUM BASE PLATE W/ 11/16"Ø HOLES
