Architectural · A-742QY

Concrete Spandrel and Column Detail at Cable Railing

Materials

Elements

About this detail

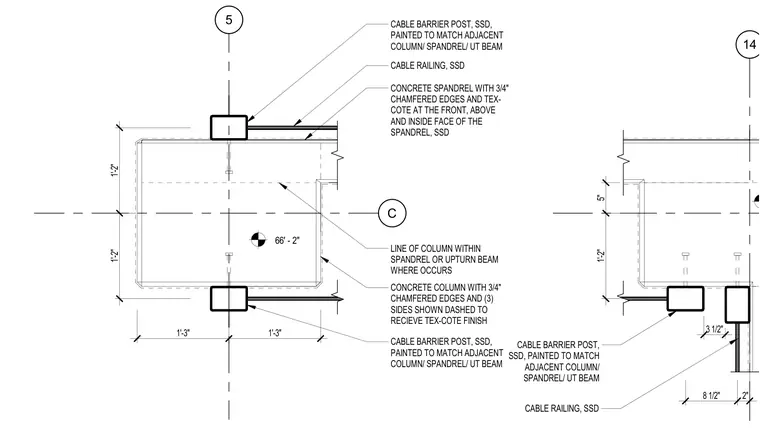

A concrete spandrel and concrete column junction includes a cable railing assembly at elevation 66 feet 2 inches. The concrete spandrel features 3/4-inch chamfered edges and a Tex-Cote finish applied to the front, above, and inside faces. The concrete column has 3/4-inch chamfered edges with three sides shown dashed to receive a Tex-Cote finish. Painted cable barrier posts and cable railings are anchored along the assembly, matching the adjacent column and spandrel line.
