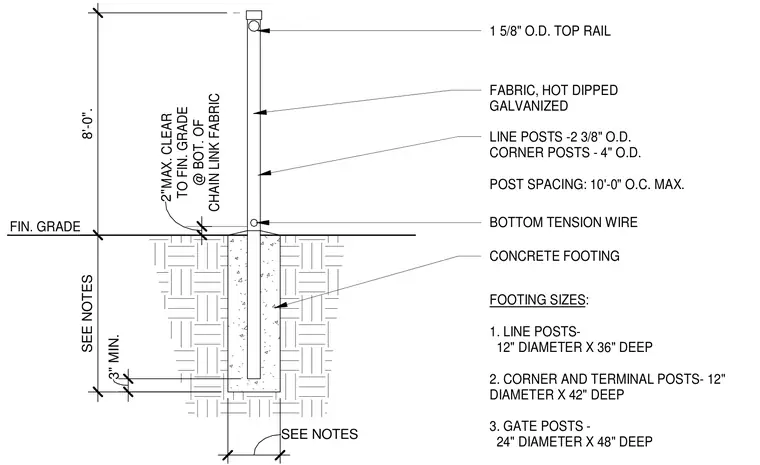

Chain link fence assembly anchored in a cast-in-place concrete footing with a finished height of eight feet above grade. The framing consists of a one and five-eighths inch outside diameter top rail, two and three-eighths inch outside diameter line posts spaced at a maximum of ten feet on center, and four inch outside diameter corner posts. Hot-dipped galvanized chain link fabric spans the framing with a bottom tension wire and a maximum two inch clearance to finished grade at the bottom of the fabric. Concrete footings are sized based on post type, with line posts and corner posts set in twelve inch diameter holes at thirty-six and forty-two inches deep respectively, and gate posts set in twenty-four inch diameter holes at forty-eight inches deep.
MAX. CLEAR TO FIN. GRADE @ BOT. OF CHAIN LINK FABRIC CONCRETE FOOTING BOTTOM TENSION WIRE LINE POSTS -2 3/8" O.D. CORNER POSTS - 4" O.D. POST SPACING: 10'-0" O.C. MAX. 1 5/8" O.D. TOP RAIL FIN. GRADE FOOTING SIZES: 1. LINE POSTS- 12" DIAMETER X 36" DEEP 2. CORNER AND TERMINAL POSTS- 12" DIAMETER X 42" DEEP 3. GATE POSTS - 24" DIAMETER X 48" DEEP FABRIC, HOT DIPPED GALVANIZED 2" 8'-0". SEE NOTES 3" MIN. SEE NOTES
