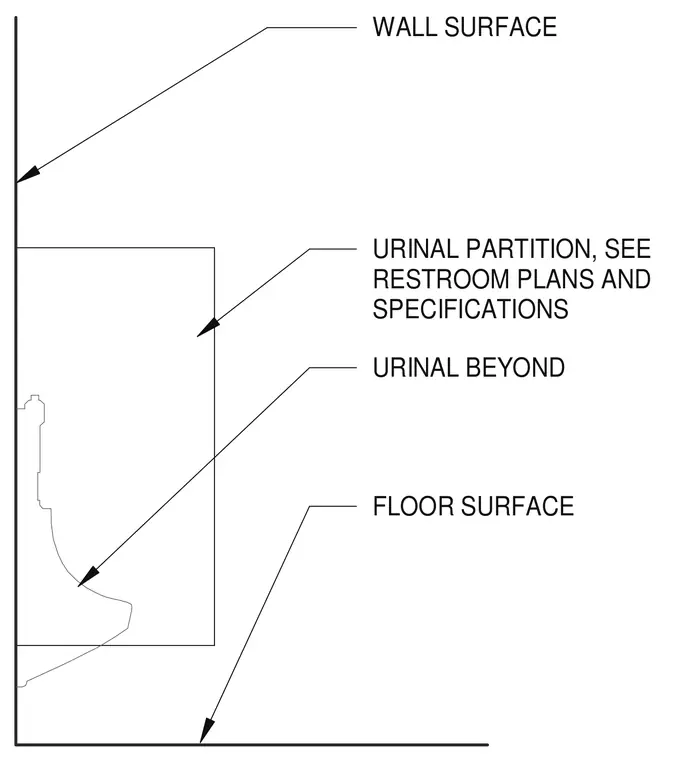

A urinal partition is mounted to the wall surface with the urinal fixture located beyond. The assembly is coordinated with restroom plans and specifications.
WALL SURFACE URINAL PARTITION, SEE RESTROOM PLANS AND SPECIFICATIONS URINAL BEYOND FLOOR SURFACE
