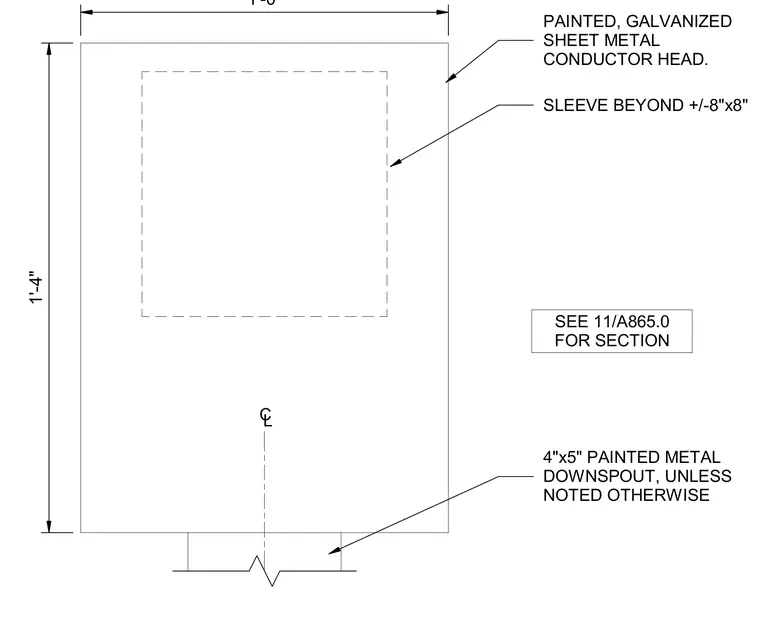

A painted, galvanized sheet metal conductor head measures 1 foot 0 inches wide by 1 foot 4 inches high. A sleeve measuring approximately 8 inches by 8 inches extends beyond the assembly. A 4-inch by 5-inch painted metal downspout connects at the bottom centered along the centerline. A reference callout directs to sheet 11/A865.0 for the section detail.
1'-0" 1'-4" 4"x5" PAINTED METAL DOWNSPOUT, UNLESS NOTED OTHERWISE SLEEVE BEYOND +/-8"x8" PAINTED, GALVANIZED SHEET METAL CONDUCTOR HEAD. SEE 11/A865.0 FOR SECTION CL
