Architectural · A-73SQ7

Curtain Wall Head and Floor Slab Junction Detail

Materials

Steel Glass / Glazing Aluminum Metal (misc.)

Elements

About this detail

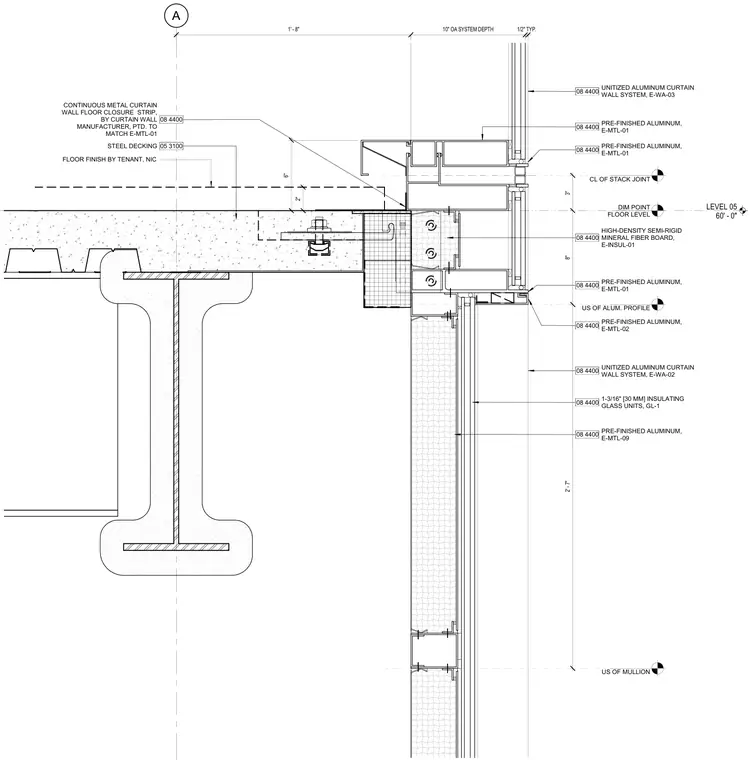

Vertical section detailing the interface between a unitized aluminum curtain wall system and a concrete floor slab over steel decking supported by a structural steel beam. A continuous metal curtain wall floor closure strip, painted to match the pre-finished aluminum mullion, spans the gap between the slab edge and the curtain wall head assembly. High-density semi-rigid mineral fiber board insulation is integrated within the spandrel zone behind the pre-finished aluminum panels and 1-3/16 inch insulating glass units. The assembly references Level 5 at elevation 60'-0", noting the floor level, center line of stack joint, underside of aluminum profile, and underside of mullion.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
