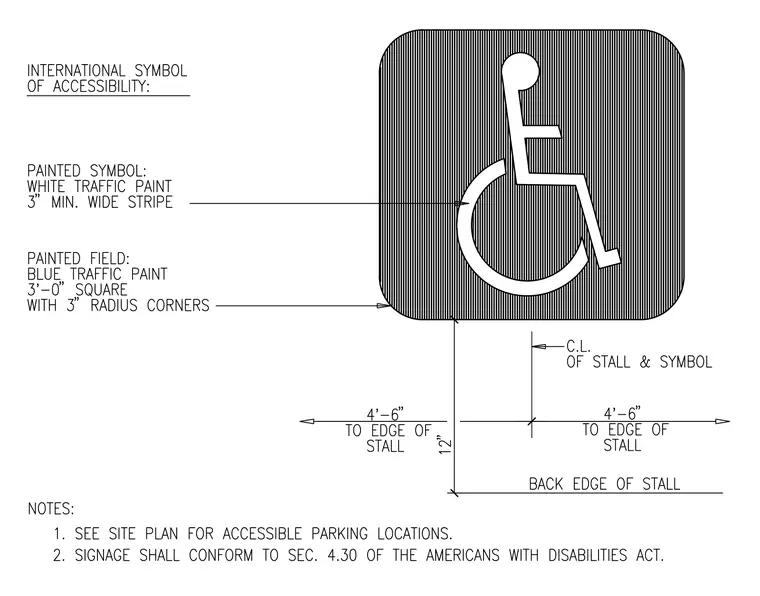

The international symbol of accessibility pavement marking features a white traffic paint symbol with three-inch minimum wide stripes centered inside a blue traffic paint field measuring three feet by three feet square with three-inch radius corners. The marking is positioned with centerlines set four feet six inches to each edge of the stall and twelve inches from the back edge of the stall. Notes require referencing the site plan for accessible parking locations and compliance with Section 4.30 of the Americans with Disabilities Act.
