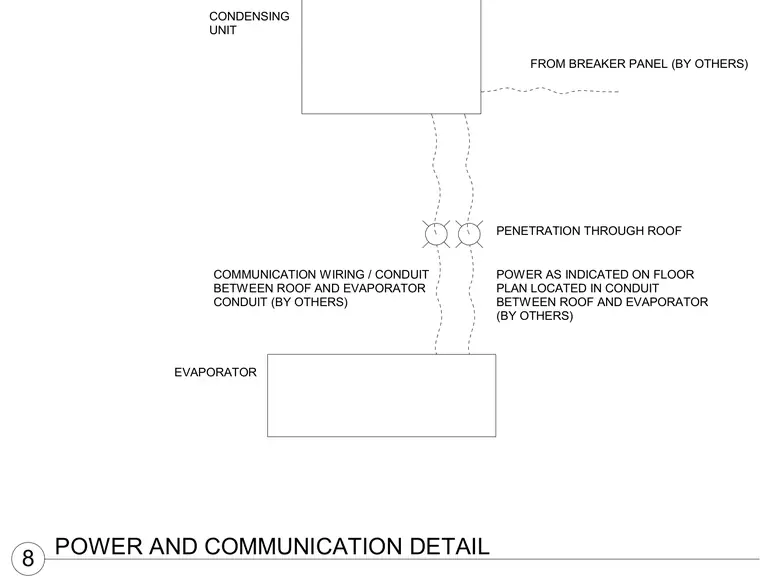

Power and communication lines run between a rooftop condensing unit and an evaporator through a roof penetration in conduit by others. Power is supplied from a breaker panel to the condensing unit, while communication wiring and power conduits connect the unit through the roof to the evaporator below.
CONDENSING UNIT EVAPORATOR POWER AS INDICATED ON FLOOR PLAN LOCATED IN CONDUIT BETWEEN ROOF AND EVAPORATOR (BY OTHERS) COMMUNICATION WIRING / CONDUIT BETWEEN ROOF AND EVAPORATOR CONDUIT (BY OTHERS) PENETRATION THROUGH ROOF FROM BREAKER PANEL (BY OTHERS) 8 POWER AND COMMUNICATION DETAIL
