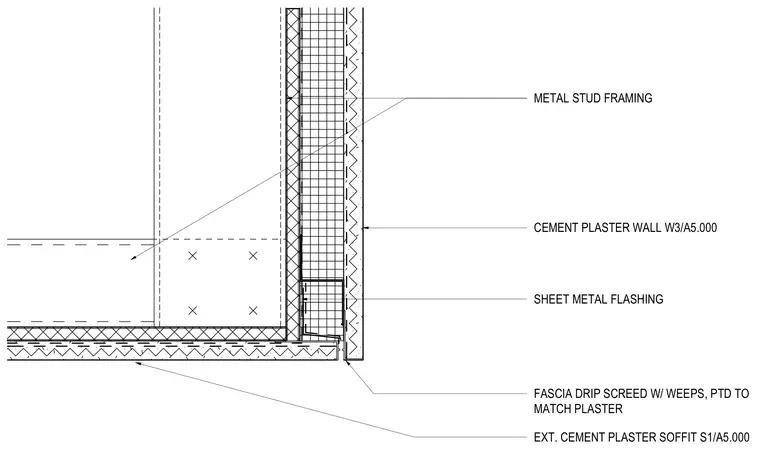

Exterior cement plaster wall and soffit assembly transitions at a 90-degree corner supported by cold-formed metal stud framing. A sheet metal flashing sits above the corner junction behind the exterior plaster finish. A fascia drip screed with weeps is installed at the lower corner edge and painted to match the plaster.
METAL STUD FRAMING EXT. CEMENT PLASTER SOFFIT S1/A5.000 FASCIA DRIP SCREED W/ WEEPS, PTD TO MATCH PLASTER CEMENT PLASTER WALL W3/A5.000 SHEET METAL FLASHING
