Architectural · A-73HDV

Wood Slat Ceiling Suspension and Joint Detail

Materials

Elements

About this detail

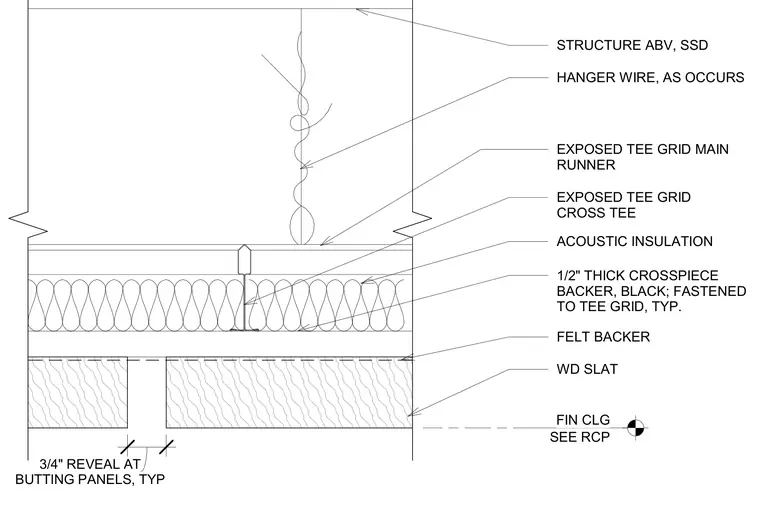

Wood slats are suspended below the structure above using hanger wires and an exposed tee grid system with main runners and cross tees. Acoustic insulation and a felt backer are positioned above the wood slats, with black half-inch thick crosspiece backers fastened typically to the tee grid. Butting panels feature a typical three-quarter inch reveal between elements.
