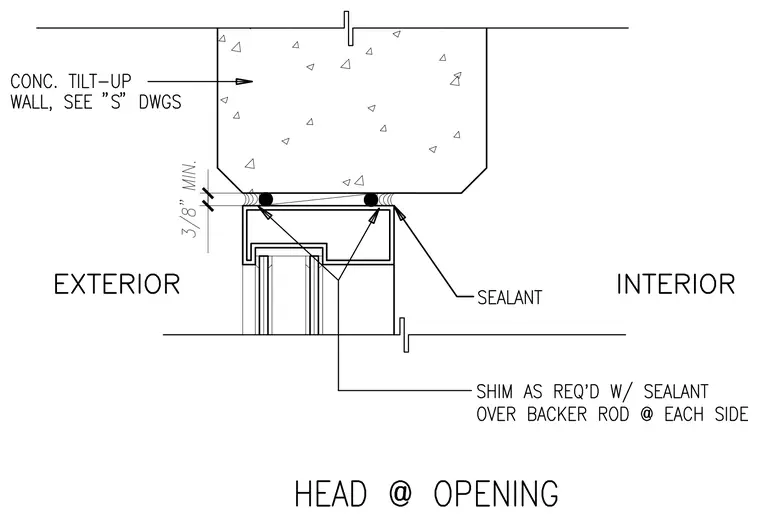

A concrete tilt-up wall panel bears above an aluminum window frame with a three-eighths-inch minimum clearance gap. Shims are placed as required with sealant over a backer rod at each side of the head joint.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
