A roof curb waterproofing assembly comprises a continuous sheet of reinforced membrane wrapping the curb and extending over rigid insulation. The membrane is secured using a seam fastening plate and sealed with cut-edge sealant. Bonding adhesive adheres the membrane to the vertical curb surface. A metal cap or counter flashing is installed at the top and fastened at twelve inches on center.

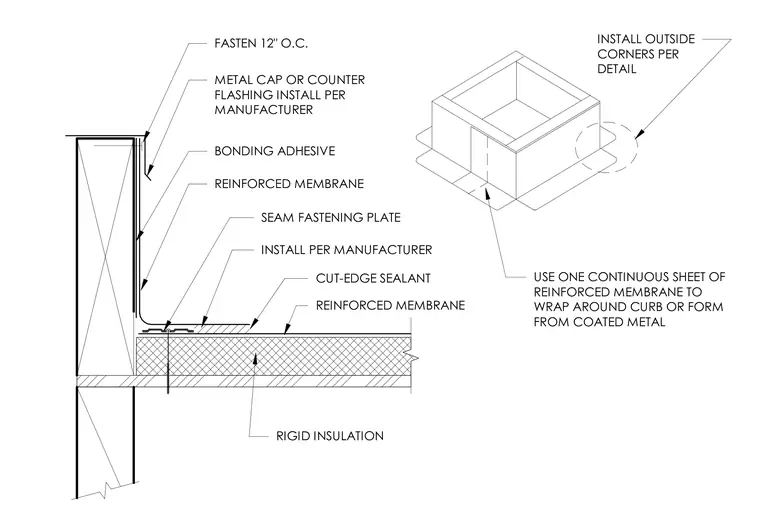

INSTALL OUTSIDE CORNERS PER DETAIL RIGID INSULATION REINFORCED MEMBRANE CUT-EDGE SEALANT INSTALL PER MANUFACTURER SEAM FASTENING PLATE REINFORCED MEMBRANE BONDING ADHESIVE METAL CAP OR COUNTER FLASHING INSTALL PER MANUFACTURER FASTEN 12" O.C. USE ONE CONTINUOUS SHEET OF REINFORCED MEMBRANE TO WRAP AROUND CURB OR FORM FROM COATED METAL
