Architectural · A-72ZW5

Attachment Notes:

Materials

Elements

About this detail

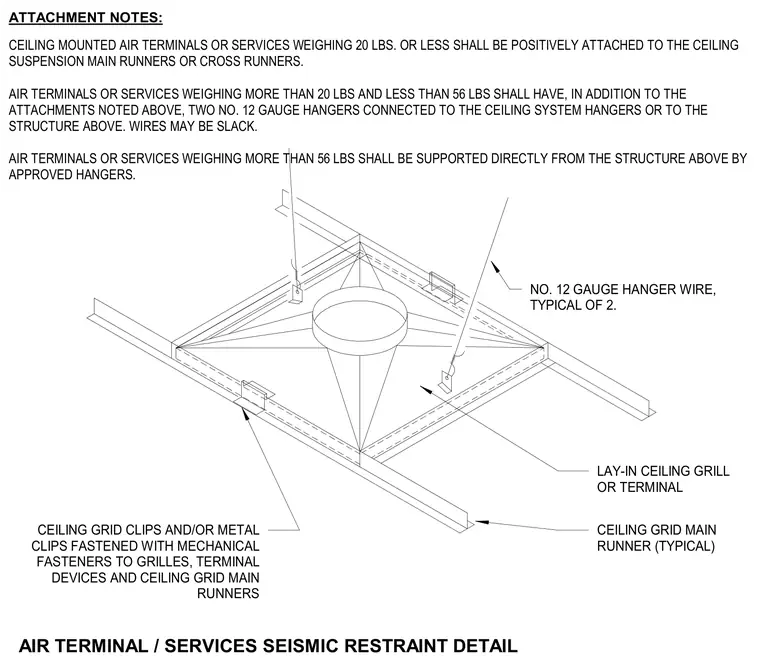

Ceiling-mounted air terminals and services weighing twenty pounds or less are positively attached to the ceiling suspension main runners or cross runners. Units weighing between twenty and fifty-six pounds require two number twelve gauge hangers connected to the ceiling system hangers or the structure above with slack wires. Units weighing over fifty-six pounds require direct support from the structure above using approved hangers. Mechanical fasteners secure ceiling grid clips and metal clips to the grilles, terminal devices, and ceiling grid main runners.
