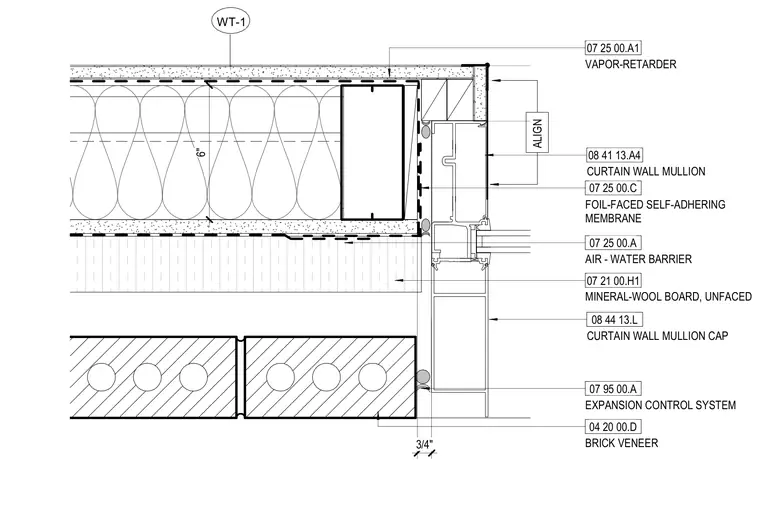

A jamb transition between an aluminum curtain wall mullion and a brick veneer wall assembly. The curtain wall framing incorporates a mullion and mullion cap sealed with an expansion control system. A foil-faced self-adhering membrane and an air-water barrier tie into the vapor retarder behind the framing. Six-inch unfaced mineral-wool board insulation fills the cavity behind the backup wall, which is faced with brick veneer.
6" 07 25 00.A1 VAPOR-RETARDER 08 41 13.A4 CURTAIN WALL MULLION 08 44 13.L CURTAIN WALL MULLION CAP 07 21 00.H1 MINERAL-WOOL BOARD, UNFACED 04 20 00.D BRICK VENEER WT-1 07 95 00.A EXPANSION CONTROL SYSTEM ALIGN 07 25 00.A AIR - WATER BARRIER 07 25 00.C FOIL-FACED SELF-ADHERING MEMBRANE 3/4"
