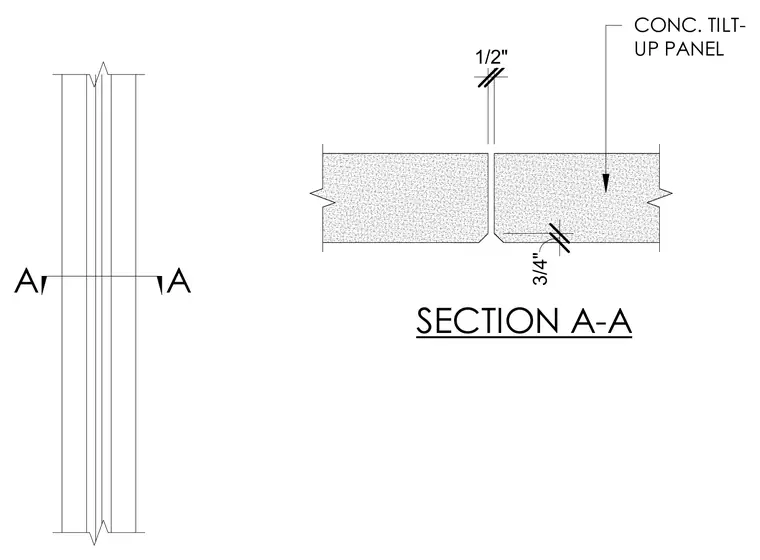

Two adjacent concrete tilt-up panels are separated by a half-inch vertical joint. The exterior edges of the panels feature three-quarter-inch chamfers at the joint interface. The section profile displays the panel thickness and joint spacing.
SECTION A-A A A CONC. TILT- UP PANEL 3/4" 1/2"
