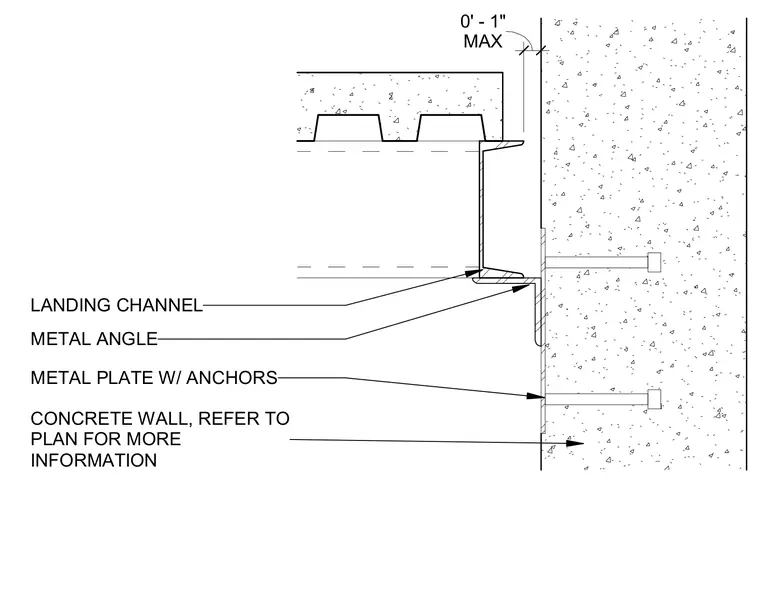

An intermediate stair landing channel is supported by a metal angle welded to the channel and connected to a metal embed plate with anchors set into a concrete wall. A maximum clearance of zero to one inch is maintained between the landing edge and the face of the concrete wall.
MAX 0' - 1" LANDING CHANNEL METAL PLATE W/ ANCHORS METAL ANGLE CONCRETE WALL, REFER TO PLAN FOR MORE INFORMATION
