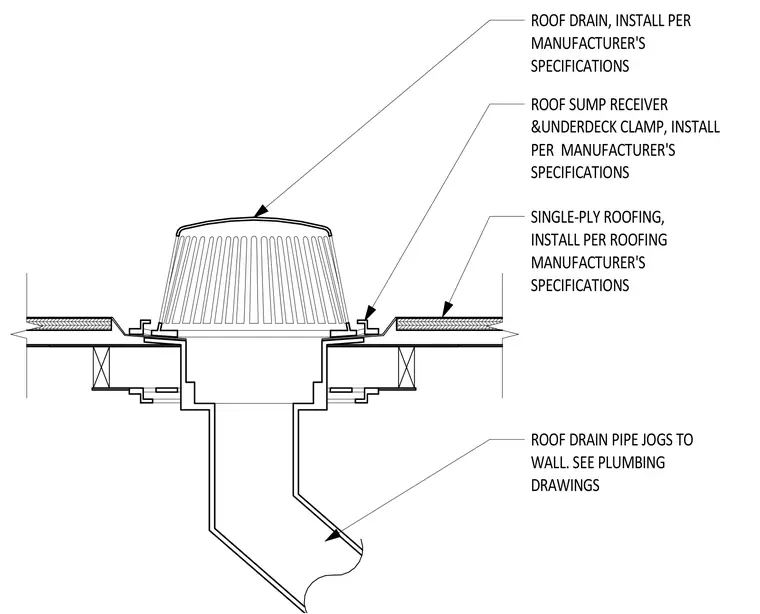

A roof drain assembly is integrated into a single-ply roofing membrane over a structural roof deck following the manufacturer's specifications. A roof sump receiver and underdeck clamp secure the drain body from above and below the deck assembly. The roof drain pipe jogs toward the wall, with further routing coordinated per the plumbing drawings.
ROOF DRAIN, INSTALL PER MANUFACTURER'S SPECIFICATIONS ROOF SUMP RECEIVER &UNDERDECK CLAMP, INSTALL PER MANUFACTURER'S SPECIFICATIONS SINGLE-PLY ROOFING, INSTALL PER ROOFING MANUFACTURER'S SPECIFICATIONS ROOF DRAIN PIPE JOGS TO WALL. SEE PLUMBING DRAWINGS
